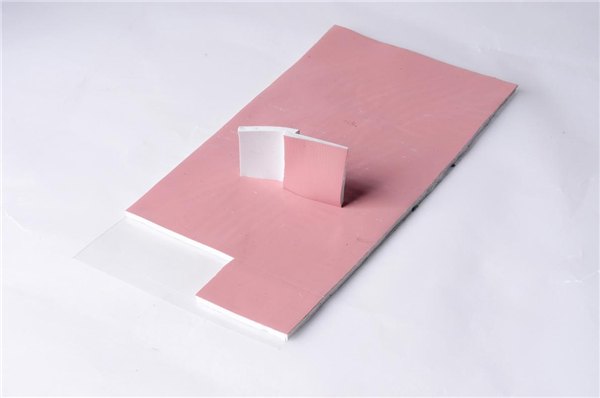

(ET400) 4.0w/m-k Thermal Pad

thermal pad

Feature:Thermal conductive pad,insulator,self adhesive,shockproof,quakeproof,padding,pad

Silicone-based thermal pads are becoming an industry standard for thermal management solutions for their durability to withstand high temperatures up to 200°C. Eteng Ltd offers a wide variety from 1.0 W/m*K up to 5.0 W/m*K. While some may be concerned with the use of silicone, outgas levels are extremely low. They come with the options of two sides self-tacky and one side self-tacky. Thickness are flexible ranging from 0.5mm and up.

Thermal interface pads are thicker than double-sided tapes, but can be provided without adhesive if removal of the pad may be necessary. Pads can also be either electrically conductive or isolating. Performance of the thermal pad is dependent on maintenance of correct, constant mounting pressure.

MATERIALS BENEFITS

• Very high thermal performance with reduced interfacial thermal resistance
• Noise/vibration dampening
• Shock absorbing, excellent thermal shock resistance and very high operating temperatures.
• Both sides compressible
• No interference or delamination
• Easy handling with no elongation
• Flame retardant
Our customers are responsible for the testing of materials quoted and assurance that the materials purchased are fit for their proposed use. Any information furnished by Eteng Ltd regarding technical data is believed to be accurate and reliable but the customer bears the responsibility in assessing fitness for purpose. Aochuan Technology makes no warranties as to the fitness, merchantability or suitability of any materials or products for any specific or general uses.

Note:1.standard color:gray,black,pink,blue

          2.standard thickness:0.2-15mm

          3.standard size:T(0.2~15mm),W(200mm),L(400mm)

          4.can made as client's requirement。

Feature

Thermal Conductive 4.0w/m-k

Soft and high compression
Glass fiber reinforced
Self-adhesive and rebound

Application

LED Light,LCD-TV/PDP,Power industry, Router, The solar industry,Power semiconductors
Avionics, Motor controls, Aerospace

Size

According to customer requirements

ET  series thermal  silicone sheet

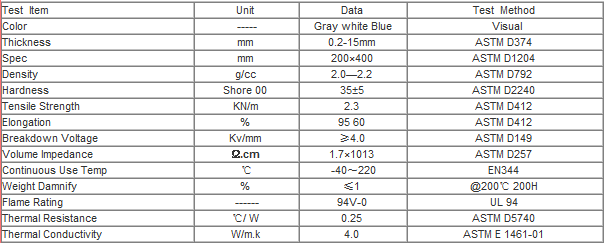

Test Method

Typical Properties

fiber glass  With Silicone

--

Color

gray,black,pink,blue,white,red

VISUAL

Thickness(mm)

0.2-15

ASTM D374

Specification

Can custom manufacture
by requirements

ASTM D1204

Desity g/cc

2.32±0.2

ASTM D792

Hardness Shore C

8~60

ASTM D2240

Thermal conductivity W/m.K(3mm)

4.0

ISO 22007-2

Thermal Resistance@20psi&1mm℃in2/W

2.20

ASTM D5470

Breakdown voltage
KV/mm(1.0mm)

11.2

ASTM D149

Volue resistivity
Ω.cm

4.5*1010

ASTM D257

Compression ratio % @50psi

62

ASTMD575-1991

Tensile strength (Mpa)

0.55

ASTM D412-1998A

Elongation%

56.4

Dielectric strength
@1MHz

6.79

ASTM D150

Dielectirc loss

0.0057

UL certify

UL94V0

UL 94

Thermal gravimetry %(120℃,7d)

0.29

ASTM E595-2006

TOperating Temperature(℃)

-50~200

--

Remark:
Torelance of Hardness: ±5
Dimension: 360mm×360mm,200mm×400mm Can be custom-made by required.
Thickness: Various of thickness for option, from 0.2mm to 14mm are available.

Torelance of  Hardness: T<1.0 ±0.1、1.0≤T<3.0 ±0.25、3.0≤T<6.0 ±0.35、6.0≤T<10 ﹢0.7/﹣0.5、10<T ﹢1.0/﹣0.5
All above data are copyrighted and elaborated by Eteng Ltd.
